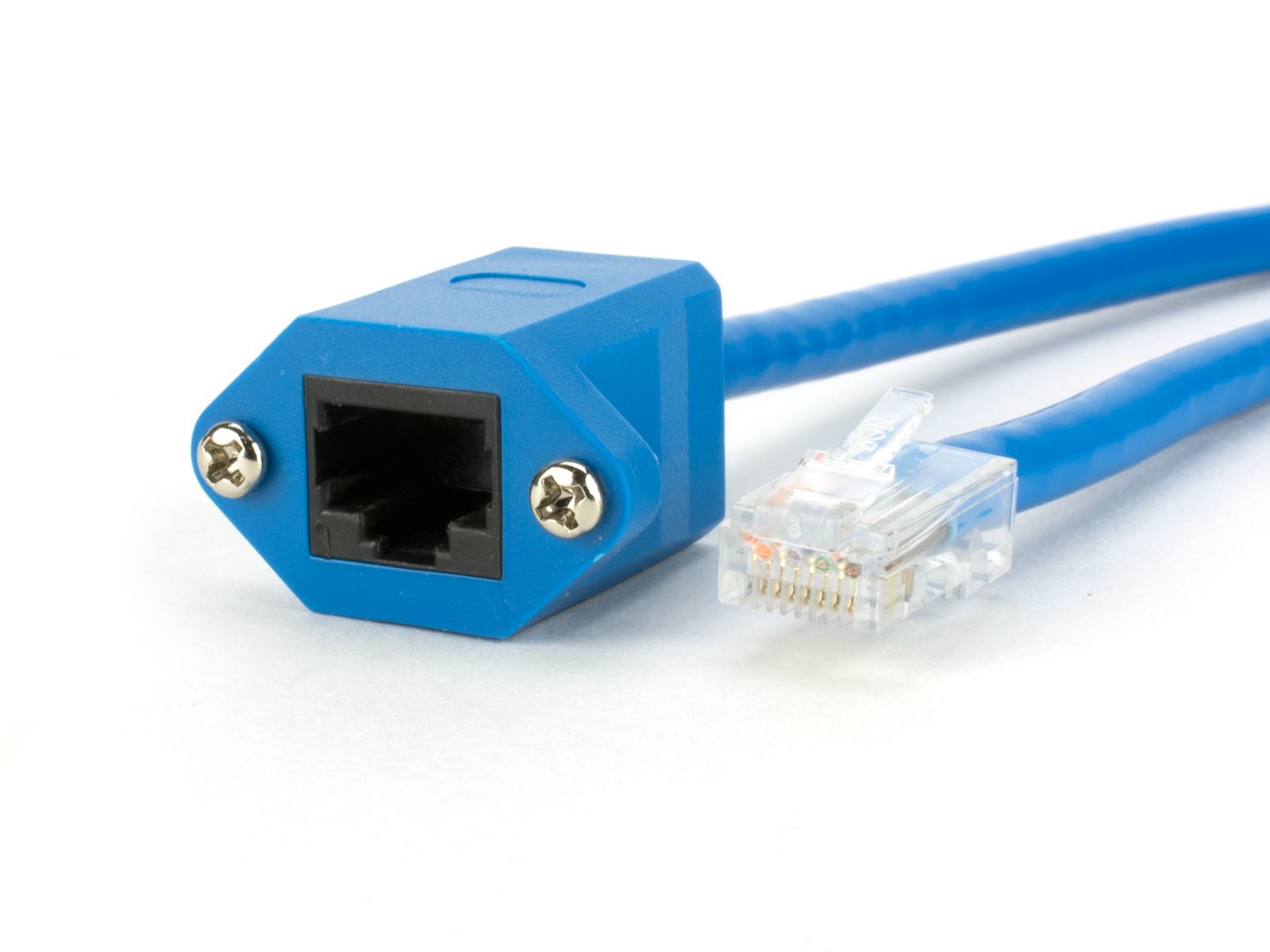

CAT6 Panel Mount Extension Cable - 6 FT, Blue

by Networx™
Category 6 high speed cables are a notch above Cat 5 enhanced cables. So, if you want a superior and faster network, then Cat6 is the way to go. With the age of the Gigabit Networks in full throttle, Cat 6 network cables are sure to give an advantage. Read More
SKU: 5-C6PMEXTBL-006
Availability: In stock
$7.87
$14.95
Save 47%

Category 6 high speed cables are a notch above Cat 5 enhanced cables. So, if you want a superior and faster network, then Cat6 is the way to go. With the age of the Gigabit Networks in full throttle, Cat 6 network cables are sure to give you the upper hand in lasting longer. Networx™, as always, strives to deliver you the highest performance achievable with its 550 MHz, Cat 6 patch cable. Read on to know why.

Networx™ Cat 6 cables are manufactured by following the strictest regulations that have been set-up by the TIA/EIA. Unlike some manufacturers out there, Networx™ does not cut corners and puts everything into the manufacturing process to give you the best quality. The Networx™ CAT 6 Patch Cable is ideal for use in high performance Gigabit Ethernet networks like 1000 Base-T.

At the same time, it remains fully compatible with your older CAT 5e patch cable or your existing 10/100 fast Ethernet network. The Networx™ CAT 6 patch cable is constructed from a high quality 550 MHz bulk cable. This cable consists of four unshielded twisted pairs. 24 AWG stranded conductors. The booted Networx™ CAT 6 patch cable flaunts stranded conductors and a highly durable and rich PVC jacket. The Networx™ Cat 6 cable also reduces NEXT interference and boosts performance by implementing short body, staggered, Cat 6 RJ45 modular connectors. To top it all off, Networx™ Cat 6 contacts are plated with 50 micro inch of gold plating. This in turn provides superior connectivity. While the CAT6 standard only requires cable rating up to 250 MHz, all Networx™ patch cables are tested up to 550 MHz.

  • Connector: 50-micron gold plated RJ-45 Male to Male
  • Conductor: 24 AWG Stranded Copper
  • Jacket: PVC
  • Applications:
    • Gigabit 1000 BASE-T; 100 BASE-T; 10 BASE-T (IEEE 802.3)
    • 4/16 Mbps Token Ring (IEEE 802.5); 100 VG-Any LAN
    • 100 Mbps; 55/155 Mbps ATM
    • High bandwidth applications
  • Designed For: Network Adapters, Hubs, Switches, Routers, DSL/Cable Modems, Patch Panels and other twisted-pair applications
  • Certifications: UL Listed
  • Standard: Category 6 TIA/EIA- 568-B
Products specifications
Cable Jacket PVC - Polyvinyl Chloride
Cable Type Cat6
Color Blue
Connector A RJ45 Male
Connector B RJ45 Male
Connector Material Polycarbonate
Maximum Data Transfer Rate 1 Gbps
Manufacturer Networx™
Wire Gauge 24 AWG
Assembly Non-Booted
Core Stranded
Conductor Copper
Connector B RJ45 Female
Length 6 FT
GTIN 845425021458
Weight (Lbs) 0.15
Availability In stock
Add your review
Overall Rating:
5.0 / 5 (based on 1 reviews)

100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
Other than the Color . . .
This is a good quality cable.  Sturdy, yet flexible, with solid connections on each end.  Fast shipping, also.
From: Guest | Date: 7/13/2016
Was this review helpful? Yes No (0/0)
