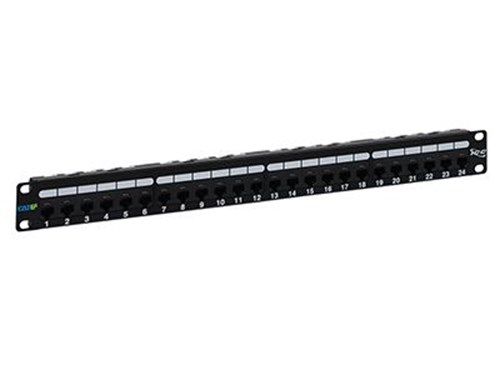

ICC's new Category 6A 24-Port 110-Type 10G Patch Panel is component compliant to ANSI/TIA Category 6A connecting hardware requirements. The vertical 110-type IDC is designed to provide optimum permanent and channel link performance and reduces potential Alien Crosstalk (ANXT). Jacks are grouped in six-port modules. The high density design occupies 1 rack mount space (RMS) and measures 19 x 1.75.
- Vertical 110-Type IDC connections reduces potential Alien Crosstalk (ANXT)
- Enhanced crosstalk cancellation and reduced return loss for high bandwidth network requirements
- Exceeds ANSI/TIA-568 CAT 6A (10G) connecting hardware Component Rating requirements
- 110-Type IDC termination help reduce installation time and improve wire retention
- 50 micro inch gold plating on all modular contacts to protect from corrosion
- Mounts on industry standard 19" wide racks or equipment
- T568A or T568B wiring schemes; not compatible with 110-type patch plug
- UL Listed
