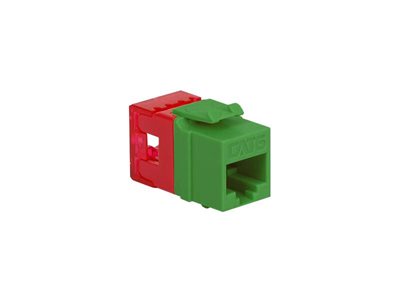

Cat 6 Modular Keystone Jack - RJ45 (8P8C) Hd - Green

by ICC
ICC's CAT 6 High Density (HD) Category 6 modular connector, RJ-45 keystone jack, is 8-position 8-conductor (8P8C) is engineered to provide superior performance and reliability, supporting Gigabit Ethernet applications and beyond... read more
SKU: IC1078F6GN
GTIN: 633758017374
Manufacturer: ICC
$3.71
Description

ICC's CAT 6 High Density (HD) Category 6 modular connector, RJ-45 keystone jack, is 8-position 8-conductor (8P8C) is engineered to provide superior performance and reliability, supporting Gigabit Ethernet applications and beyond. The advanced printed circuit board design is tuned to provide optimum signal quality with maximum headroom, allowing it to exceed TIA/EIA Category 6 performance standards. It offers superior signal quality and noise reduction due to its enhanced Near-End and Far-End Crosstalk cancellation and minimum return losses. The HD design offers a smaller rear footprint maximizing space in confined work areas.

  • CAT 6 rated connectors provide excellent performance for data networks requiring maximum speed and bandwidth
  • PCB technology provides maximum performance and superior signal quality
  • Enhanced crosstalk cancellation reduces return loss and improves performance by rejecting noise and unwanted signals
  • Exceeds ANSI/TIA/EIA-568-B.2-1 Category 6 connecting hardware requirements
  • Designed with rear split back 110 IDC reducing termination time
  • Terminate with 110 punch down tool ICACSPDT00
  • Reduced rear footprint allows for greater connectivity density and provides for more port configurations in a smaller area
  • Includes an integrated TIA-568A/B color wiring diagram
  • Backwards compatible to all lower rated category components
  • Compatible with all ICC configurable faceplates, inserts, surface mount boxes, and blank patch panels
  • Compatible with all ICC furniture faceplates, Elite bezels, and Elite surface mount boxes
  • Used with ICC Category 6 patch cords
  • Available in almond, black, blue, gray, green, ivory, orange, purple, red, white, and yellow
  • Installation instructions included
  • UL listed
Products specifications
Manufacturer ICC
Color Green
Cable Type Cat6
SKU IC1078F6GN
GTIN 633758017374
Weight (Lbs) 0.03
