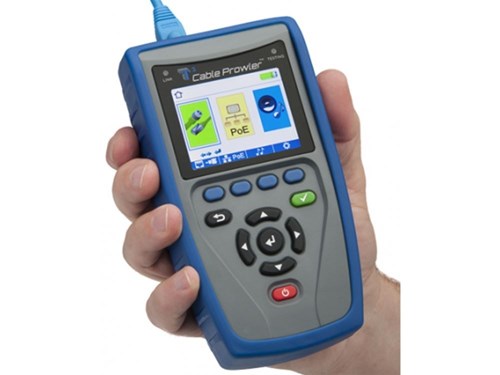

Cable Prowler™ Cable Tester

by Platinum Tools®
The Cable Prowler™ combines network testing (physical layer and link), cable verification & troubleshooting and PoE voltage testing in a handheld tester with a full-color display; all with the capability of saving and printing tests results from a personal computer. Read More
SKU: TCB300
Availability: Out of Stock
$423.96

The Cable Prowler™ combines network testing (physical layer and link), cable verification & troubleshooting and PoE voltage testing in a handheld tester with a full-color display; all with the capability of saving and printing tests results from a personal computer.

Cable Verification & Troubleshooting:
The Cable Prowler provides full cable testing on any category network, coax, or telephone cable. It will display wire map, numbered ID remotes, and any faults, including shorts, opens, miswires, split pairs, and reverses, The full-featured Cable Prowler measures cable length (using TDR technology) and generates tone levels for signal tracing and cable identification on all pairs, a selected pair, or a selected pin.

PoE Voltage Testing:
The Cable Prowler enables quick identification of a network drops link capability and current link status. Cable Prowler also tests the presence of PoE on the network drop and what class of PoE per IEEE 802.3 af/at with load test for voltage drop. These network tests can also be saved for record keeping and printing.

Kit Includes:
Cable Prowler main unit
Coax and Network Remote Set: #1-5, F-Connector Coupler in foam holder
Network/Tel Testing and ID Remote #1
No-Fault Cables - Qty 2
Micro USB Cable
Hanging Pouch
User Manual
Quick Start Guide

  • Displays length measurement for each pair in feet or meters using TDR technology
  • Detects presence of PoE and class of PoE per IEEE 802.3af/at with load test for voltage drop
  • Detects and reports current link speed and link capabilities for active Ethernet drops up to 1 Gbps
  • Link light to identify location on a hub/switch/router port
  • Tests Ethernet cable configuration and verifies connectivity while conducting tests for opens, shorts, miswires, split pairs, and reverses
  • Generates selectable tones on selected pins for use with tone tracers
  • Supports up to 8 testing & ID remotes for network & telephone cables
  • Supports up to 20 network & coax ID – only mapping remotes
  • Full color graphical wire-mapping
  • View saved cable tests, define cable name, save/print ALL cable testing and network testing
  • Multilingual (English, French, Spanish, German, Italian)
Products specifications
AltitudeOperating: 10,000'
BatteryOperating: 20 hours
CableCable Testing and ID: 1,000'
Dimensions6.8" x 3.6" x 1.85" (17.27cm x 9.14cm x 4.69cm)
EnclosureHigh-strength PC/ABS plastic
EthernetIndicates advertisesd speed of 10/100/1000
FeaturesCan link network at 10/100 Base-T, F-connector: 55 VDC or VAC, Identifies mode A or B , Indicates Base-T half or full duplex, Length Measurement: 0 to 1500' ± (5% +1'), Standby: 1.5 years, Storage: -22°F to 140°F (-30°C to 60°C), Supports 20 x RJ45 and 20 x F-connector ID only remotes, Supports 8 continuity and ID number remotes (RG45), Tests for classes and loads cable up to 25.5 W
Humidity10 to 90% non-condensing
LanguagesEnglish, French, and Spanish
Maximum VoltageRJ Jack: 66 VDC or 55 VAC
MeasurementTime Domain Reflectometry (TDR)
PoETests for IEEE 802.3af and IEEE 802.3at
TemperatureOperating: 32°F to 122°F (0°C to 50°C)
Test OutputSave Test Results: Stores up to 250 cable or network tests with user defined names
Tone GeneratorTone Frequencies: 730 Hz and 1,440 Hz
GTIN849160006640
Weight (Lbs)2.18
