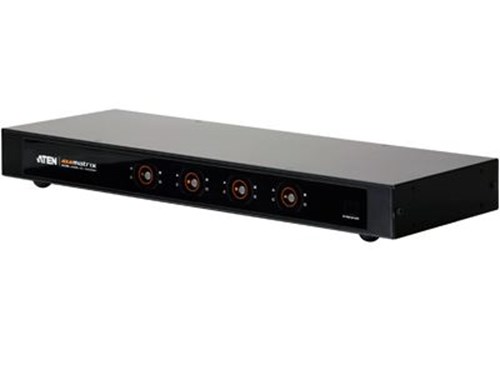

4x4 HDMI Matrix Switch

ATEN's VM0404H, HDMI Video Matrix Switch, integrates a video switch, and video splitter together. Regular video splitters can distribute a single video signal to multi-monitors and a video switch allows one of many inputs to be displayed on a single display terminal. The VM0404H is different in that it allows video signals from 4 separate sources to be independently. routed to 4 monitors, projectors, or television sets . VM0404H is ideal for home theater applications where the ability to place any of four inputs to any, all, or selected monitors offers an unprecedented flexibility in video enjoyment. The included remote control and convenient front panel pushbuttons allow you to quickly and easily cycle through HDMI sources and displays, while the front panel LEDs indicate the source device for each display at a glance. The addition of a RS232 serial port allows, the VM0404H to be controlled from a high-end controller, PC, or home automation / home theater software package. The VM0404H is also boosts the video signal allowing you to separate the display from the switch up to 60 ft (with 24 AGW video cable) while maintaining excellent video quality.

• Connects any of 4 HDMI sources to any of 4 HDMI displays.
• Toggle between HDMI sources and displays using remote control or front panel pushbuttons
• Long-distance transmission up to 20m(24 AWG) and 15m(28 AWG)
• Cascade via other VM0404Hs to provide up to 64 HDMI sources/displays for digital signage systems
• Supports Dolby True HD and DTS HD Master Audio
• High video resolution: Up to 1080p and 1920x1200.
• Power On Detection if one HDMI source is powered off, the VM0404H will automaticallyswitch to the next powered-on device
• HDMI 1.3b, CEC and HDCP compliant
• IR remote control, push button, or RS-232 control
• HDMI 1.3b and HDCP Compliant
• 1U in size and rack mountable
• Supports high-resolution video HDTV resolutions of 480p, 720p, 1080i, 1080p (1920x1080);VGA, SVGA, SXGA, UXGA (1600x1200), and WUXGA (1920 x 1200)
• HDMI 1.3b and HDCP 1.1 compliant
• HDMI CEC Compliant
• Supports 12-bit Deep Color for HDMI formats
• Supports Dolby True HD and DTS HD Master Audio
• Up to 60 Hz refresh rate
• DDC compatible
• Signaling rates up to 2.25 G bits in support of 1080p display.
• All-metal casing
• Rack Mountable
