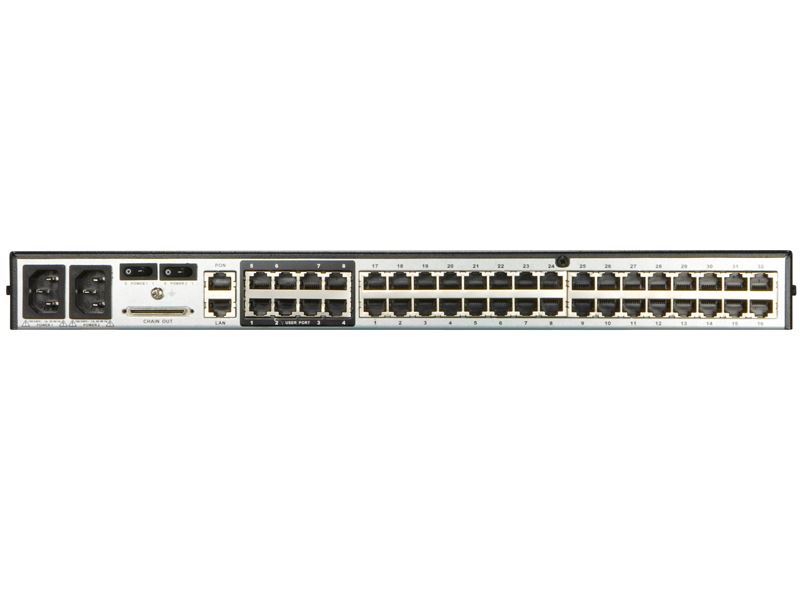

32-Port 9 Users Network Matrix KVM w/ Audio and Virtual USB support

by ATEN
The KM0932 Matrix KVM Switch gives IT administrators in large corporations advanced access and control of multiple servers. Read More
Manufacturer 3 Year

This product is covered under a 3 Year Manufacturer Warranty. Please contact the manufacturer for more details regarding product replacement. Terms and Conditions apply, click here for more info.

SKU: KM0932
$6,300.00
The KM0932 Matrix KVM Switch gives IT administrators in large corporations advanced access and control of multiple servers. Operators working at up to 9 consoles can assume simultaneous and independent control of 32 directly connected, or through a combination of daisy chaining and cascading, as many as 8000 computers. A special feature will allow two KM0932 to be connected together in a way that allows 18 simultaneous operators independent access to 64 attached servers. A dual power supply connected to different electrical circuits ensures continued operation in the event of a power failure on one circuit. The KM0932 allows for real time port control by an administrator over an RS232 connection.Close an operators session, switch ports, or end an operator’s connection to a port without closing the user’s session. Server access and control is easily accomplished by means of a convenient, intuitive, graphical user interface. In addition, once the initial network setup has been accomplished, server administration tasks may be managed over the internet or through your local network by using any web browser. The KM0932 also supports audio and virtual media when used in conjunction with a KA7176 CPU module and KA7240 console module

  • 8 consoles independently and simultaneously control up to 32 computers directly
  • Multi-platform support: PC, Mac and SUN
  • Console conversion: any type of console can control any type of computer mixed combinations (PS/2&USB) supported on either the console or computer side
  • RJ-45 connectors provided for computer&console connections
  • Save rack space with this 1U high unit
  • No need for KVM extender; the Twisted Pair cable connections, with optional conversion devices, support computers&consoles up to 150 meters away from the KM0432
  • Auto Signal Compensation (ASC) to assure optimum video resolution for various distances, no DIP switch setting needed for the different distances of up to 150 meters between the KM0432 and computer or console
  • "Keep-Alive feature ensures that the keyboard and mouse connection works properly, even when the KVM switch loses power supply temporarily
  • Plug-n-Play; no software required
  • Convenient computer selection via intuitive Hot Key combinations or On Screen Display (OSD) menus; OSD port list automatically expands when stations are added
  • Port names automatically reconfigure when station sequence is changed
  • Hot pluggable; add or remove computers without having to power down the switch
  • Lifetime firmware upgrading allowed
  • Master-users can access any computer from any console ?even the ones connected to the second, the third, ?or the thirty-second daisy chained switch
  • Local-users can access any computer connected to the local switch, whether directly or through daisy chain/cascading
  • AutoScan feature for monitoring user-selected computers
  • Three level password security: super administrator, administrator and users
  • Keyboard and mouse emulation allows computers to boot when they are not selected
  • LCD, VGA, SVGA, XGA and multisync monitor support
  • Superior video quality; supports resolution of up to 1024 x 768 within the distance of 150 meters
Products specifications
ManufacturerATEN
WarrantyManufacturer 3 Year
GTIN672792400186
Weight (Lbs)20.30
