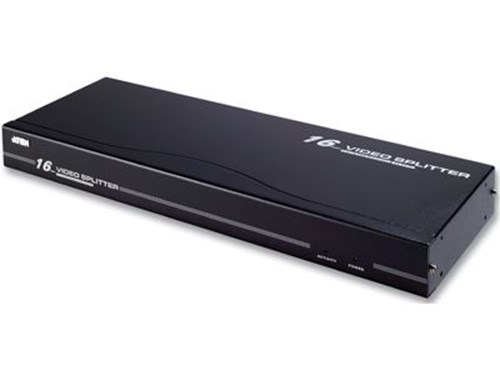

16 Port Video Splitter with Audio

by ATEN
The Video Separator is a signal booster and splitter that is used to take video input from a single source and direct it to 16 video outputs for monitors using analog signals. Read More
Manufacturer 3 Year

This product is covered under a 3 Year Manufacturer Warranty. Please contact the manufacturer for more details regarding product replacement. Terms and Conditions apply, click here for more info.

SKU: VS0116
$500.00
The Video Separator is a signal booster and splitter that is used to take video input from a single source and direct it to 16 video outputs for monitors using analog signals. The signal boost obtained by using the VS0116 allows you to not only split the signal but to extend the distance so that you can send the signal to about 210 feet. (Your average VGA card, combined with a standard VGA cable, can send a clear VGA signal approximately 25 feet.) This makes public broadcasts from a single computer very feasible. If you want to display the same information on many monitors at once, such as in a classroom environment, or at a demonstration, this product fits your needs. Bandwidth is the term that is used to describe the signal capacity of these units. In general, bandwidth is directly proportional to the amount of data transmitted per unit of time. Specifically, in analog signals, bandwidth is the difference between the highest-frequency and the lowest frequency components of a givin signal. For example a voice telephone signal has a bandwidth of 3000 Hz (or 3000 cycles per second), where an analog TV signal has a bandwidth of approximately 6MHz (or 6 million cycles per second) which is approximately 2000 times greater than a simple voice phone call. VS0116 has a bandwidth of 250MHz (which is 250 million cycles per second) and that is 42 times greater than a simple TV signal. This huge bandwidth allows for the transmission of large amounts of information at a very high rate of speed, and thus you can use the very high resolution setting of 1920 x 1440 in 24 or 32 bit true color mode at a refresh rate of 60Hz.

  • One video and audio input with sixteen video/audiooutputs
  • High 250 MHz video bandwidth
  • High resolution video up to 1920 x1440 @60 Hz
  • Transmission distance of up to 210 feet
  • Supports DDC, DDC2, DDC2B
  • Stereo audio support
  • Suitable for VGA, SVGA, SXVGA, UXGA and Multisync monitors
  • Cascades 3 levels to support even hundred of outputs
  • Hot plugable
  • Rack mountable in 19 " 1U system.
  • Ideal for public broadcasting; remote monitoring; classroom and training facilities
Products specifications
Inputs1x HD15
Outputs16x HD15
ManufacturerATEN
WarrantyManufacturer 3 Year
GTIN672792151446
Weight (Lbs)8.30
