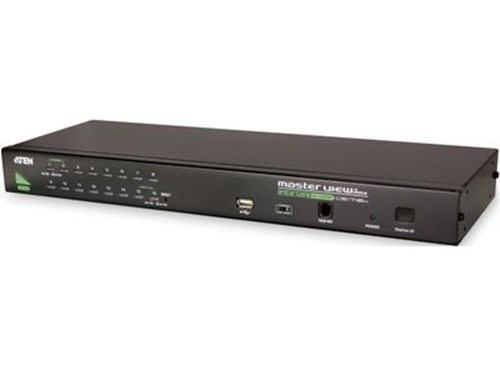

16 port multiplatform KVM switch

by ATEN
The CS1716A KVM allow access to16 directly connected computers, and through Daisy chain architecture as many as 512 total servers may be controlled from a single keyboard, mouse and monitor. Read More
Manufacturer 3 Year

This product is covered under a 3 Year Manufacturer Warranty. Please contact the manufacturer for more details regarding product replacement. Terms and Conditions apply, click here for more info.

SKU: CS1716A
$650.00
The  CS1716A KVM allow access to16 directly connected computers, and through Daisy chain architecture as many as 512 total servers may be controlled from a single keyboard, mouse and monitor. To simplify installation and to keep track of so many servers a custom ASIC (patent pending) provides an auto-sensing function that recognizes the position of each KVM station in the chain. A front panel  USB port provides server access to USB devices such as Hard Drives, or CDROM s, eliminating  the need to physically connect a storage device to a server to install  patches or updates. The CS1716A will accommodate either PS/2 or USB keyboards and mice, and will connect to a mixture of PS/2 and USB servers.

  • A single console controls up to 16 computers
  • Daisy-chain up to 31 additional units control up to 256 computers from a single console
  • Front accessible USB port allows each computer to access USB peripherals
  • Dual Interface supports computers and console with PS/2 or USB keyboards and mice
  • Multiplatform support Windows 2000/XP/Vista, Linux, Mac, and Sun
  • Display Emulation Technology stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
  • Auto PS/2 and USB interface detection
  • USB / PS/2 keyboard and mouse emulation computers boot even when the console focus is elsewhere
  • Video resolution up to 2048 x 1536; DDC2B
  • No software required convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus
  • Auto-senses station's position on daisy-chained installations; no need for manual dip switch setting; front panel led indicates station's position
  • Port names automatically reconfigured when station sequence is changed
  • Two level password security; only authorized users view and control computers; up to four users and an administrator with separate profiles for each
  • Auto Scan feature for monitoring user-selected computers
  • Broadcast mode; operations simultaneously performed on all selected computers
  • Hot pluggable add or remove computers without having to power down the switch
  • Buzzer on/off via hotkey and OSD
  • Firmware upgrades to all the chained KVM switches at the same time via the daisy-chain cable
  • Rack mountable in 19 inch system rack (1U)
Products specifications
ManufacturerATEN
WarrantyManufacturer 3 Year
GTIN672792100864
Weight (Lbs)3.65
