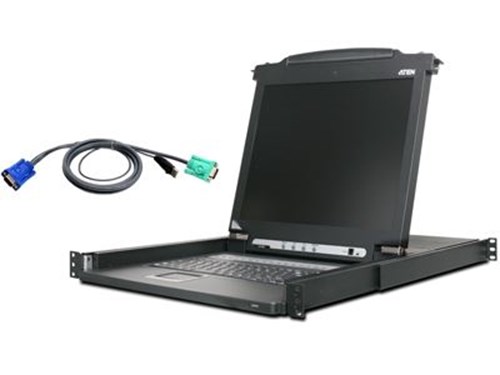

16-Port 17in. LCD KVM w/ 16 USB KVM cables

The CL1016M, 17" LCD integrated 16-port KVM switch, is line of SMB-class KVM solution from ATEN. This LCD built in unit provides one local user access and support up to 192 servers through daisy chaining. The user can use push button, hotkeys, or OSD to select the desired computer. For additional security, CL1016M offers two levels of passwords, administrator and user. IT administrator can control user access to the port level of the KVM. The CL1016M is ready to install. It's all-in-one design avoids the extra assembly steps required toconnect the LCD module and KVM sections. Additionally, ATEN's friendly rail design reduces the complexity of rack installation.

• An LCD console drawer with built-in KVM directly controls up to 16 computers
• 16-port KVM switch, keyboard, touch pad, all in a 1-U high and 19 inchrack-mountable unit
• Auto-sensing of station position on daisy chained installations - no need for manual DIP switch setting
• Daisy-chain up to 11 ACS1208A KVM units to control up to 192 computers from a single console.
• No software required
• Convenient computer selection via Pushbutton, Hotkey or OSD
• AutoScan feature monitors selected computers
• Hot pluggable - add or remove computers without having to power down the switch
• Two level password protection,and separate profiles for up to four users and an administrator
• Two level logout - manual and timed
• Firmware upgrade through flash ROM
• PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
• 17" RGB analog LCD display supporting high XGA resolutions of up to 1280 x 1024 with 250cdKit Depth/m(sq) brightness
• USB Servers/Computers are supported with the Intelligent KVM cables (2L5202UP/2L5203UP)
