101 Series Snake Tray Cable Tray 3" Wide Floor Tray

by Cable Management Solutions®
101 Series Snake Tray Cable Tray 3" Wide Floor Tray from Computer Cable Store™. The 101 series Snake Tray is designed for installation below a raised floor and as risers on vertical surfaces. Available in seven sizes, the 101 series can accommodate up to 72 square inches of cable path... read more
SKU: CM-101-3-8
$85.22
Description

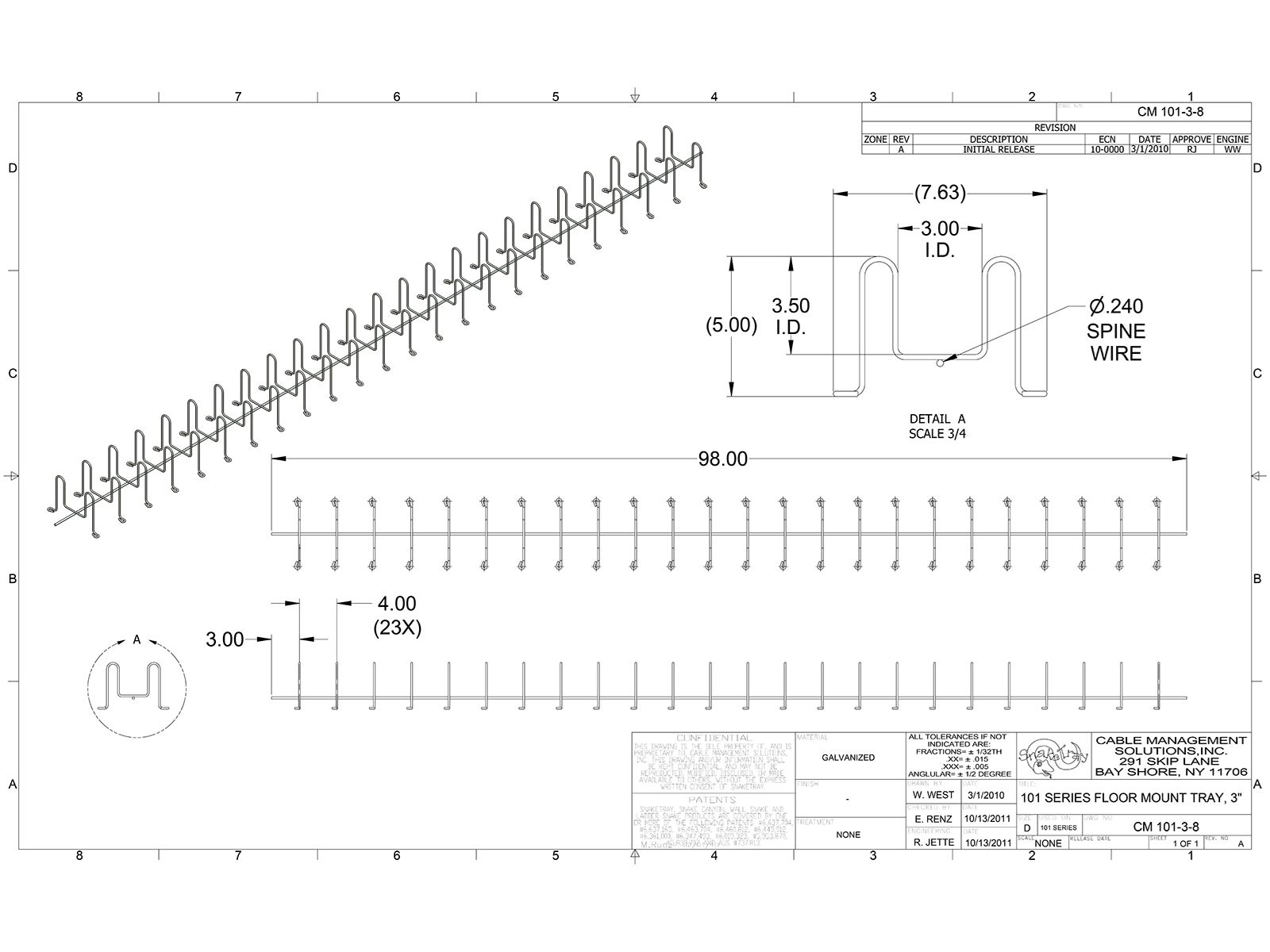

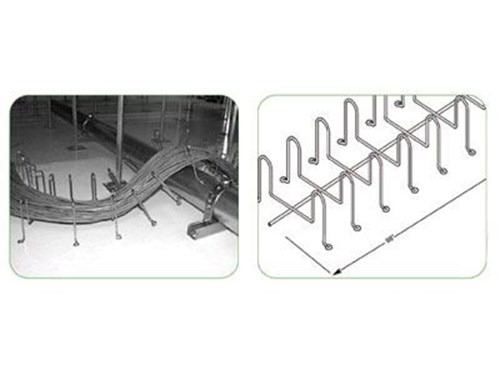

101 Series Snake Tray Cable Tray 3" Wide Floor Tray. Cable Management Solutions' bendable Snake Tray is manufactured from ASTM A510 - High strength steel wire, to form a unique, completely hand bendable cable management system. Welding pre-formed steel hoops to a central 5/16” spin every four inches products Snake Tray, allowing for its unique hand bendable design, while providing easy entry and exit for cable at any point along the length of the tray. The trays are constructed from pre-galvanized wire in accordance with ASTM standards to product a resilient finish, which withstands most indoor applications, or mild sheltered outdoor environments. Snake Tray is products in standard eight foot sections and with its unique high density nesting characteristics allow for more tray to be shipped in less space than our competitors, thus reducing shipping costs and on-site storage requirements.The 101 series Snake Tray is designed for installation below a raised floor and as risers on vertical surfaces. Available in seven sizes, the 101 series can accommodate up to 72 square inches of cable path. The center spine allows the Snake Tray to be easily bent by hand around and over obstructions, around corners and up walls. Mounting rings are pre-formed into the support legs (pre-engineered offsets) and require no additional bracketry. As with all Snake Tray products, only one connector bolt is required to join sections together.
Products specifications
Manufacturer Snake Tray®
Width 5 Inch
Height 7.25 Inch
Material Galvanized Steel
Cable Capacity 80
Physical Volume 10.5 si
Length 8 FT
SKU CM-101-3-8
Weight (Lbs) 6.50
